Product Details:
Payment & Shipping Terms:
|
Catergory: | Clean Room Lab Equipment | Product: | Goods Air Shower |
---|---|---|---|
Material: | 1.0 Mm 304 Stainless Steel | Usage: | Cargo Air Shower In Clean Room |
External Size: | L:2000*W:1500*H:2050 Mm | Air Speed: | 25 M/s |
Internal Size: | L:1500*W:1400*H:1960 Mm | Customization: | Acceptable For Size And Material Customized |
High Light: | laboratory pass box,ffu fan filter unit |
1. Product

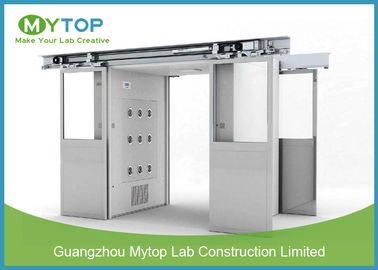

Class 100 Goods Air Shower Passage For Food Factory Clean Room
2. Application
Air shower is a kind of local purifying equipment, mainly installed between clean room and non-clean room. People and cargos have to get a shower before entering into the clean area. It can effectively remove the dust carries by people or cargos thus to prevent or reduce dust from getting into the clean area.
3. Features:
1, Fully auto controlled by computer, 2 electronic interlocking door, automatically blow and shower.
2, Duration for showering can be adjusted from 0 second to 99 seconds with time display and voice prompt. It is easy to operate with membrane touch switches.
3, Floor and nozzles are made of quality stainless steel.
4, 99.99%@0.3μm, Efficiency can reach 99.99%@033μm with pre filter and hepa filter.
5, air velocity can up to 25m/s. professional and fast design, non-standard products.
4. Optional Accessories:
1. All stainless steel cabinet
2. Stainless steel inner wall
3. UV lamp
4. Air flow electrostatic device
5. Hidden door system
5. Specification
Model | AL-GS2000/S1 | AL-GS2000/S3 | |
External Size( mm ) | W2000×D1500×H2050 | W2000×D3000×H2050 | |
Internal Size( mm ) | W1500×D1400×H1960 | W1500×D2900×H1960 | |
Wind Speed | ≥25m/s | ≥25m/s | |
Stainless Steel Nozzle | 18PCS | 36PCS | |
Showering time | Factory setting 10s,10-99s adjustable | ||
Cabinet Material | 1.0/1.2mm cold rolled steel painted / Stainless steel | ||
Door Material | Stainless steel (half glass/full glass) | ||
Pre-filter | Size | 775×380×17 | 775×380×17 |
Efficiency | G1 | G1 | |
HEPA Filter | Size | 610×610×120 | 610×610×120 |
Efficiency | 99.99% 0.3µm | 99.99% 0.3µm | |
Fluorescent Lamp | 12W×2 | 12W×3 | |
Fan Power(W) | 600*2 | 600*4 | |
Power Supply | 380V/50Hz (220V optional) |
