Product: | Wall-in Fume Hood | External Size: | L:1500*W:840*H:2150 Mm |
---|---|---|---|
Air Capasity: | 1500 CMH | Internal Size: | L:1385*W:730*H:745mm |
Power: | 500 W | ||
High Light: | laboratory fume cupboard,laboratory ventilation hoods |
1. Product

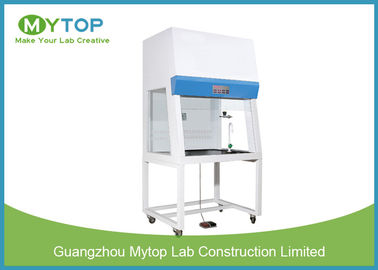

5 feet Metal Chemical Laboratory Wall-in Fume Hood For Hospital
2. Application
FH(X) series Fume hoods are the first defense to minimize chemical exposure to research workers.
They are considered the primary means of protection from inhalation of hazardous vapors.
3. Advantage
1. UV lamp. Sterilize the working atea.
2. LCD display screen. See the air velocity ditrctly.
3. Inside fan. Easy to install, save time.
4. Adjustable airvelocity (6 levels).
5. Motorized front glass.
6. The 10 degree sloped front allows an ergonomic, fatigue-free working posture.
4. Technical Data
Model | FH1000(X) | FH1200(X) | FH1500(X) | FH1800(X) | |||
External Size (W*D*H) | 1000*840*2150mm | 1200*840*2150mm | 1500*840*2150mm | 1800*840*2150mm | |||
Internal Size (W*D*H) | 880*730*745mm | 1080*730*745mm | 1380*730*745mm | 1680*730*745mm | |||
Max Opening | 520mm | ||||||
Work Surface Height | 750mm | ||||||
Blower | Built-in centrifugal blowers; Speed adjustable with 9 levels | ||||||
Air Velocity | 0.3~0.8m/s | ||||||
Noise | ≤60dB | ||||||
Fluorescent Lamp | 18W*1 | 18W*1 | 36W*1 | 36W*1 | |||
UV Lamp | Emission of 253.7 nanometers for most efficient decontamination | ||||||
Front Window | Motorized;5 mm toughened glass, anti-UV | ||||||
Material | Exterior Body: Cold-rolled steel with anti-bacteria powder coating. | ||||||
Work table:Chemical resistant phenolic resin | |||||||
Power Supply | AC220V±10%, 50/60Hz;100V±10%, 60Hz | ||||||
Consumption | 400W | 400W | 500W | 500W | |||
Stand Accessory | Water tap; Gas tap; Water sink; Base stand, UV lamp*2, Fluorescent lamp. | ||||||
Gross Weight | 230kg | 253kg | 280kg | 340kg | |||
Package Size(W*D*H) | 1230*1120*1680 mm | 1350*1120*1680mm | 1650*1120*1680mm | 1950*1120*1680mm |
